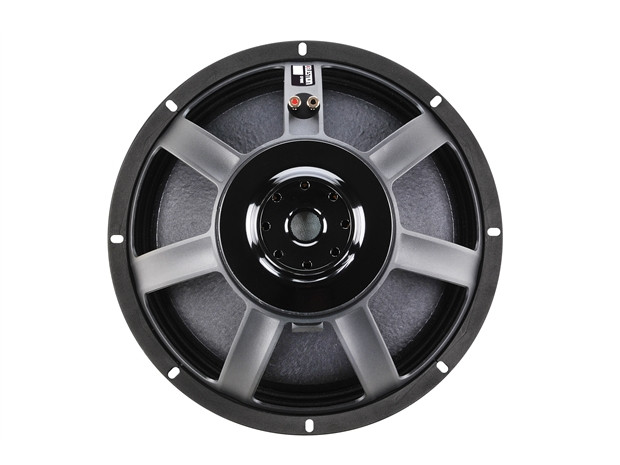

Celestion CF18VJD

18" 1600W Speaker 8OHM

18" ferrite magnet, cast aluminium chassis LF driver delivering 1600Wrms (AES Standard) power handling and 97dB sensitivity

5" high temperature, dual layer, Inside/Outside voice coil for higher efficiency, preventing sensitivity loss through thermal compression

FEA optimized magnet assembly delivers highly symmetrical cone - movement, leading to exceptionally low harmonic distortion

Vented front plate increases airflow to provide enhanced cooling

Twin demodulation rings reduce flux modulation, minimizing electromagnetic distortion

Double suspension and "multi-roll" surround provide exceptional linearity at extremes of cone excursion

SPECIFICATIONS:

• Nominal diameter 460mm/18in
• Power rating 1600Wrms
• Nominal impedance 8 Ohm
• Sensitivity 97dB
• Frequency range 25Hz-1500Hz
• Voice coil diameter 125mm/5in
• Chassis type Cast aluminium
• Magnet type Ferrite
• Coil material Round copper
• Former material Glass fibre
• Cone material Carbon and Kevlar loaded paper
• Surround material Cloth sealed
• Suspension Double
• Xmax 9mm/0.35in
• Gap depth 12mm/0.47in
• Voice coil winding width 30mm/1.18in
