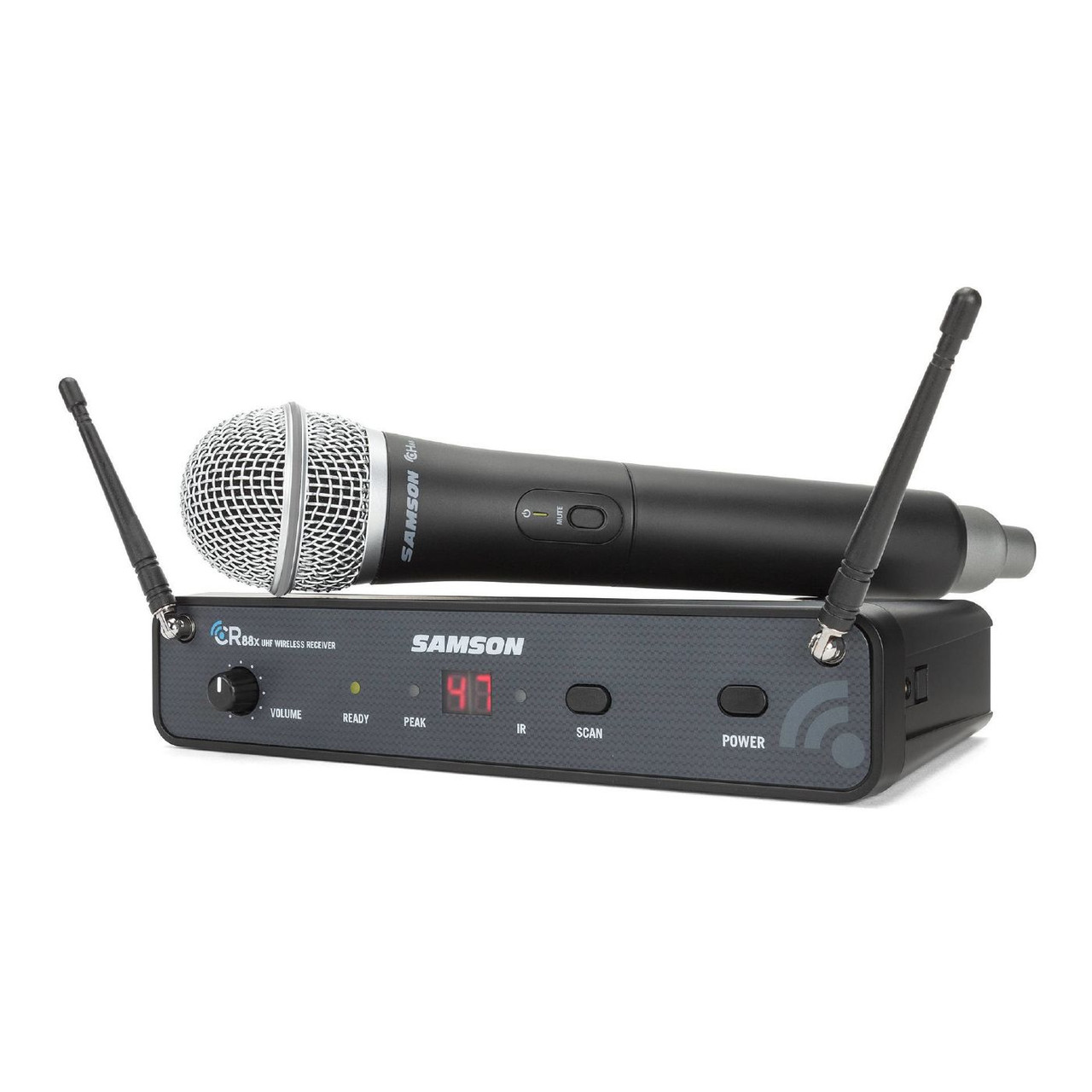

Samson CON88X Handheld UHF Wireless System (542-566MHz)

The Concert 88x Handheld system is an excellent choice for singers, educators and presenters making the leap to the freedom of wireless.

Features

Concert 88x Handheld System

• High-performance professional UHF wireless system
• 100 operating channels across 25 MHz bandwidth
• Up to 8 systems can be used simultaneously per frequency band (region dependent)
• 300' operating range (line-of-site)
• Rackmount kit included

CR88x Wireless Receiver

• One-touch automatic frequency scan finds the best operating channel
• Two digit LED display
• Infrared link locks the receiver and transmitter to the same channel
• True diversity design minimizes dropouts
• Tone key prevents unwanted noise when transmitter is off or out of range
• Balanced XLR and unbalanced 1/4" outputs

CH88 Handheld Transmitter

• Unified microphone body and transmitter module
• Adjustable input gain
• Silent mute button
• Power/Mute status indicator
• Up to eight hours of continuous use from two AA batteries

Q7 Dynamic Microphone Capsule

• Dynamic vocal microphone with tailored mid-range presence
• Neodymium dynamic mic element for wide dynamic range
• Supercardioid pickup pattern with excellent off-axis rejection

Specifications

• Operating Band and Frequency: D - 542–566 MHz

System

• Working Range: 300' (100m) line of sight
• Audio Frequency Response: 50 Hz - 15 kHz
• T.H.D. (Overall): <1% (@AF 1 kHz, RF 46 dBu)
• Dynamic Range: >100 dB A-weighted
• Signal to Noise: >90 dB
• Operating Temperature: –10°C (14°F) to +60°C (+140°F)
• Tone Key Frequency: 35 kHz

CB88 Beltpack Transmitter

• Input Connector: Mini-XLR (P3)
• Input Impedance: 1M Ω
• Input Gain Range: 38 dB
• RF Power: 10 mW EIRP
• Power Requirements: Two AA (LR6) alkaline batteries
• Battery Life: 8 hours
• Dimensions (HxLxD): 3.75" x 2.44" x 0.75" | 96mm x 62mm x 18.5mm
• Weight: 0.2 lb / 93 g

CH88 Handheld Transmitter

• Microphone Element: Dynamic
• Input Gain Range: 28 dB
• RF Power: 10 mW EIRP
• Power Requirements: Two AA (LR6) alkaline batteries
• Battery Life: 8 hours
• Dimensions (HxØ): 10.23" x 2.1" | 260mm x 54mm
• Weight: 0.48 lb / 218 g

CR88x Receiver

• Audio Output Level - Unbalanced: +14 dBu
• Audio Output Level - Balanced: +9 dBu
• Audio Output Impedance - Unbalanced: 810 Ohms
• Audio Output Impedance - Balanced: 240 Ohms
• Sensitivity: -100 dBm / 30 dB sinad
• Image Rejection: >50 dB
• Operating Voltage: 15 VDC 200mA
• Dimensions (LxWxH): 8.25" x 4.9" x 1.75" | 210mm x 125mm x 44mm
• Weight: 0.88 lb / 400 g
