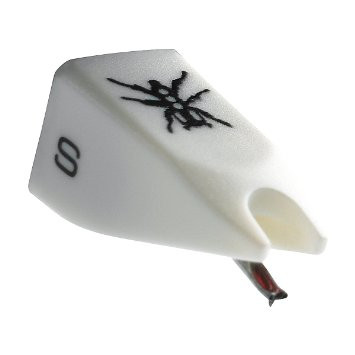

Ortofon Q-bert Stylus

1 x Q-bert Stylus for Concorde or OM Cartridge

DJ Q-bert is one of the most respected names in hip-hop and turntablism. So when Ortofon teamed up with 'Q' to design a cartridge and stylus from the ground-up, you knew it was going to be good. Ortofon's Q-bert series features rock-solid handling, extremely high output and low-wear characteristics. Ortofon also toned down some of the high end to reduce some of the unwanted artefacts that are introduced from well-worn vinyl, and a slightly hyped mid-range designed to enable scratching to cut through the mix.

Made in Denmark. Included are 1 x Q-bert stylus.

Specifications:

• Output voltage at 1000Hz, 5cm/sec.: 11 mV
• Channel balance at 1kHz: 1.5 dB
• Channel separation at 1kHz: 22 dB
• Channel separation at 15 kHz: -
• Frequency range at -3dB: 20-18,000 Hz
• Frequency response: 20-18,000 Hz -3 dB
• Tracking ability at 315 Hz at recommmende tracking force: 90 μm
• Compliance, dynamic lateral: 12 μm/mN
• Stylus type: Spherical
• Stylus tip radius: R 18 μm
• Tracking force range: 2.0-4.0 g (20-40 mN)
• Tracking force recommended: 3.0 g (30 mN)
• Tracking angle: 20º
• Internal impedance, DC resistance: 1.680 Ohm
• Internal inductance: 920 mH
• Recommended load resistance: 47 kOhm
• Recommended load capacitance: 200-400 pF
• Cartridge weight: 18.5 g

Crossfader are Authorised Ortofon DJ Australia dealers.
